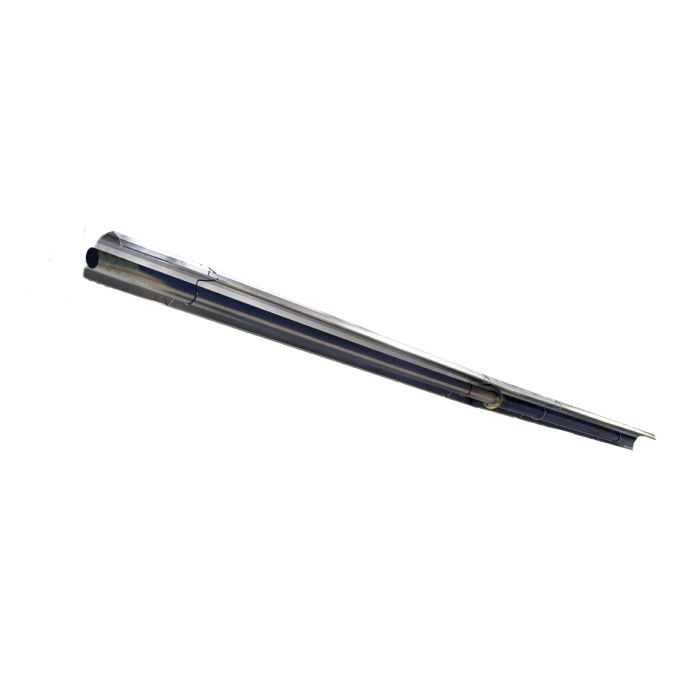

Tube Set - 25ft for JET25
SKU
F106025
This JET25 Tube Set are designed for use exclusively with JET 100,000 BTU Burner Boxes. When used in broiler houses, the JET25 System provides the most even floor heat available for poultry house floor heating.
- 16-Gauge 3.5in Round Tubes, First 10ft
- 16-Gauge 4in Round Tubes, Last 15ft
- Full Cover Polished Aluminum Reflector
- 2 Year Limited Warranty
- Outside or Inside Air for Combustion
- Installs easily as Straight or U-Tube Configuration
The JET25 is a 25ft tube set intended for use with the JET 100,000 BTU Burner Box. It is uniquely comprised of a 3.5in round x 10ft aluminized steel first tube, transitioning to 15ft of 4in round hot rolled steel tubes the last 15ft. Combined with the 10ft flame produced by the JET Burner Box, this system provides the most even heat along its 25ft length of any AG heater on the market making this heater nearly 25% more efficient than any 20ft system. JET tube sets come with tubes, polished aluminum reflectors, hangers, couplers, ventcap, drip-line flex gas supply line chains and turbulator.
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Weight | 130 |
|---|---|
| Item Length (in) | 124 |
| Item Width (in) | 18 |
| Item Height (in) | 12 |
| Item Weight (lb) | 106 |
| Tube Diameter | 4in |
| Venting: Exhaust | 25ft Max |
| Mounting Height Range | 10ft - 14ft |
| Warranty | 2 Year Limited |
