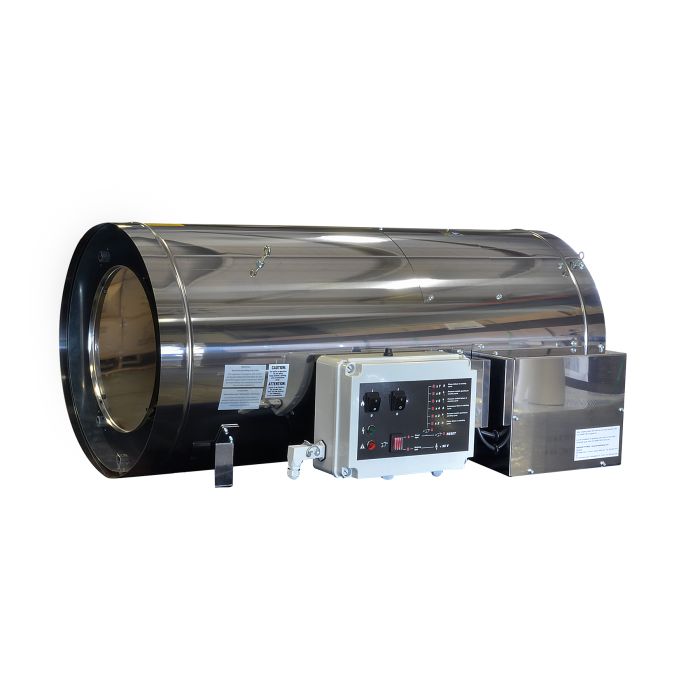

400,000 BTU Stainless Steel Direct Fired Forced Air CO2 Generator and Heater
SKU
F130115
Model: HS408AG
This 400,000 BTU heater is designed for greenhouse heating and or CO2 enrichment as well as horse stable heating. It is CSA and CE certified for use in greenhouses. It runs on Natural Gas or Liquid Propane and comes standard with a NG to LP conversion kit. The external housing, burner and combustion chamber are all made with high quality stainless steel to provide longevity. The combustion chamber is highly efficient resulting in a clean burn and ethylene content less than 0.6PPM. The HS408AG comes standard with automatic ignition and other safety features like an air flow switch, gas pressure switch, overheat monitoring, CO monitor and simple on-board diagnostics. It is designed to be suspended from the four stainless steel hanging bolts. HS408AG comes with a hook up for a local thermostat or can be set up to be managed by computer controlled thermostats. Other optional features include a delayed ignition relay so you can stagger start of multiple heaters, CO2 generator, moisture resistance starter and a remote failure alarm.
- High grade stainless steel exterior & burner - durable
- 99% efficient
- Generates CO2
- 200ft Throw
- Automatic ignition, easy to operate
- On-board diagnostics
- Easy installation - no chimney or drain pipe necessary
- CSA Greenhouse Certified
- NG-LP gas two different nozzles
- Built-in Safety Devices:
- Low voltage shut-off, Protects motor, Prevents CO build-up
- IP65 grade dust & water protection
- Flame sensor safety device
- Air pressure switch
- High limit switch
- Failure alarm
This 400,000 BTU heater is designed for greenhouse heating and or CO2 enrichment as well as horse stable heating. It is CSA and CE certified for use in greenhouses. It runs on Natural Gas or Liquid Propane and comes standard with a NG to LP conversion kit. The external housing, burner and combustion chamber are all made with high quality stainless steel to provide longevity. The combustion chamber is highly efficient resulting in a clean burn and ethylene content less than 0.6PPM. The HS408AG comes standard with automatic ignition and other safety features like an air flow switch, gas pressure switch, overheat monitoring, CO monitor and simple on-board diagnostics. It is designed to be suspended from the four stainless steel hanging bolts. HS408AG comes with a hook up for a local thermostat or can be set up to be managed by computer controlled thermostats. Other optional features include a delayed ignition relay so you can stagger start of multiple heaters, CO2 generator, moisture resistance starter and a remote failure alarm.
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
Weight | 123 |
---|---|
Fuel Type | Natural Gas or Propane |
Minimum NG Line Size | 3/4in |
Electrical Rating | 208-230 vac |
Air Volume (CFM) | 4,120 CFM |
Gas Inlet Connection | 3/4in |
Gas Inlet Pressure Min | 8in WC NG-LP |
Gas Inlet Pressure Max | 10in WC NG; 13in WC LP |
Mounting Height Range | 8ft - 12ft |
Clearance to Combustibles: Horizontal | Above 36in; Behind 36in; Sides 36in |
Venting Required | No |
Venting: Air Intake | No |
Ducting | No |
Thermostat Optional | No |
Ignition | Electronic |
Item Length (in) | 29 |
Item Width (in) | 48 |
Item Height (in) | 28 |
Item Weight (lb) | 172 |
Warranty | 1 Year Limited |
Model | HS408AG |
