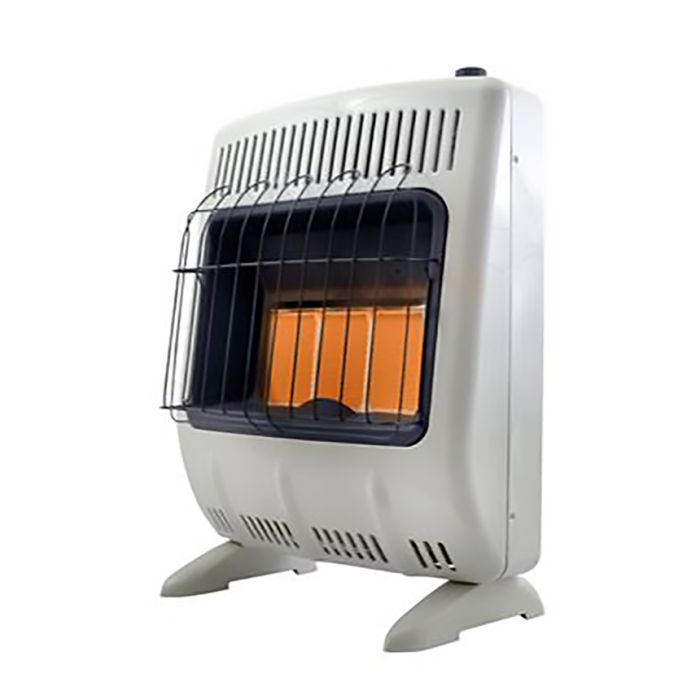

20,000 BTU Vent Free Radiant Series
Model: HSSVFR20NGBT / HSSVFR20LPBT
Heatstar Vent-Free Heaters come in radiant or blue flame indoor safe wall-mountable heaters that run off of either propane (F156051) or natural gas (F156041).
| Item # | Product Name |
|---|---|
| F156041 | 20,000 BTU Vent Free Radiant Natural Gas Heater with Thermostat and Blower |
| F156051 | 20,000 BTU Vent Free Radiant Propane Heater with Thermostat and Blower |
| F299201 | Vent Free Blower Fan Kit |
| F273684 | Remote Propane Vent Free Installation Kit |
| F273863 | Two Stage Propane Regulator |
| F276262 | 3/8in Male Pipe Thread x 3/8in Male Flare Brass Fitting |
| F273071 | 5ft Propane Hose and Regulator Assembly |
| F273072 | 12ft Propane Hose Assembly |
| F271239 | 24-in Universal Gas Appliance "Hook-Up" Kit |
This Radiant 20,000 BTU Vent Free heaters are the perfect supplemental heating solution even on the coldest days. This heater is conveniently equipped with a thermostat for superior control of the temperature in your space. Also, with a battery powered electronic ignition, starting it is a breeze - battery included. This unit can be permanently mounted to the wall or securely fastened to the floor with included mounting brackets and fasteners. Multiple burner tiles utilize radiant heat warming your space with the power of the sun. With a factory standard Oxygen Depletion Sensor (ODS), rest assured this heater will provide you with years of comfortable and safe heat.
- 20,000 BTU per hour >
- Heats up to 700 sqft
- Radiant heat burner
- Quiet integrated blower for gentle circulation of heated air
- Thermostat for automatic temperature control
- Automatic low oxygen shut-off system (ODS)
- Legs and wall mounting hardware included
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Weight | 26.2 |
|---|---|
| Heating Area (Sq Ft) | 700 |
| Thermostat Optional | Included |
| Fuel Type | Natural Gas or Propane |
| Burner Type | Infrared |
| Blower/Fan | Included |
| Air Volume (CFM) | 18.5 |
| Ignition | Electronic |
| Clearance to Combustibles: Horizontal | Above 36in; Below 36in; Sides 10in |
| Mounting Height Range | Suggested 36in from Floor for Accessibility |
| Mounting Options | Wall Mount and Feet Kits Included |
| Item Length (in) | 23.5 |
| Item Width (in) | 12.5 |
| Item Height (in) | 27.25 |
| Item Weight (lb) | 30 |
| Warranty | 5 Year Limited |
| Model | HSSVFR20NGBT / HSSVFR20LPBT |
Download Prop 65 Statement
Country Restriction: Canada
State Restriction: California
