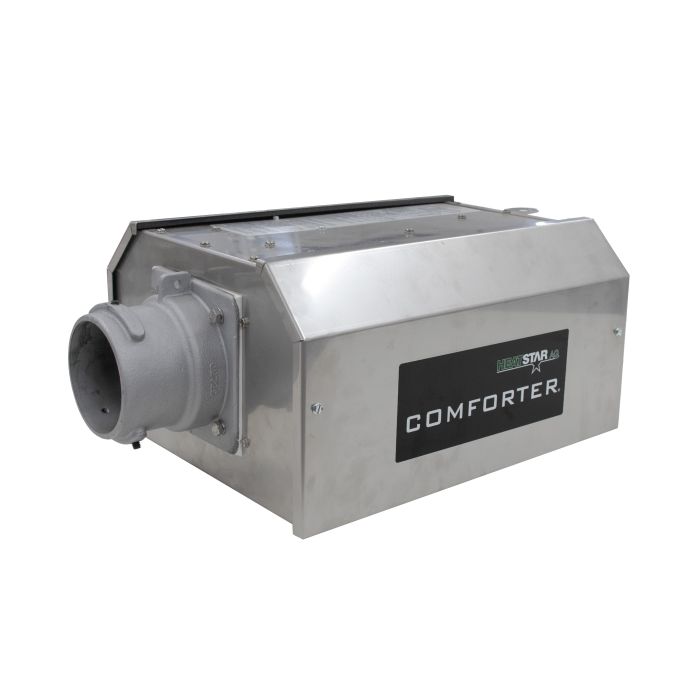

125,000 BTU COMFORTER® Stainless Steel LP Burner Box
SKU
F102657SS
COMFORTER Stainless Steel Burner Boxes, fueled by either Propane or Natural Gas, provide low intensity, infrared heat. Because the heat energy is transferred efficiently and evenly to the floor, COMFORTER is a great choice for keeping chicks at the feeder and drinker!
- Gasket Sealed Burner Control Box
- Stainless Steel
- Outside or Inside Air for Combustion
- Heavy Duty Cast Iron Tube Flange, Corrosion and Flame Resistant
- Direct Spark Ignition
- Honeywell Gas Valve
- 1 Year Limited Warranty
This is a 125,000 BTU COMFORTER Stainless Steel Burner Box fueled by Propane. It provides low intensity, gentle heat directly towards floor-level objects, which in turn, heat surrounding air to desired temperature. This is done in a wide footprint along the length of the tube. This Burner Box has proven performance in agricultural settings like poultry and swine barns. Because the heat energy is transferred efficiently and evenly to the floor, COMFORTER is a great choice for keeping chicks at the feeder and drinker! The broad footprint offered by this heater makes it more efficient than round radiant brooders.
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Electrical Rating | 120V |
|---|---|
| Electrical Connection | Pigtail Leads in Junction Box |
| Item Length (in) | 27.25 |
| Item Width (in) | 14.5 |
| Item Height (in) | 10.75 |
| Gas Inlet Connection | 1/2in ID FPT |
| Gas Inlet Pressure Min | 4in - 6in WC |
| Gas Inlet Pressure Max | 14in WC |
| Mounting Height Range | 14ft - 19ft |
| Clearance to Combustibles: Horizontal | Above 6in; Below 87in; Sides 36in |
| Venting: Length Min/Max | 25ft |
| Venting: Exhaust | 25ft |
| Venting: Air Intake | 25ft |
| Thermostat Optional | Optional |
| Fuel Type | Propane |
| Ignition | Direct Spark |
| Weight | 33.9 |
| Warranty | 1 Year Limited |
Download Prop 65 Statement
