100,000 BTU JET25 Single Stage Series
Model: JET25NG / JET25LP

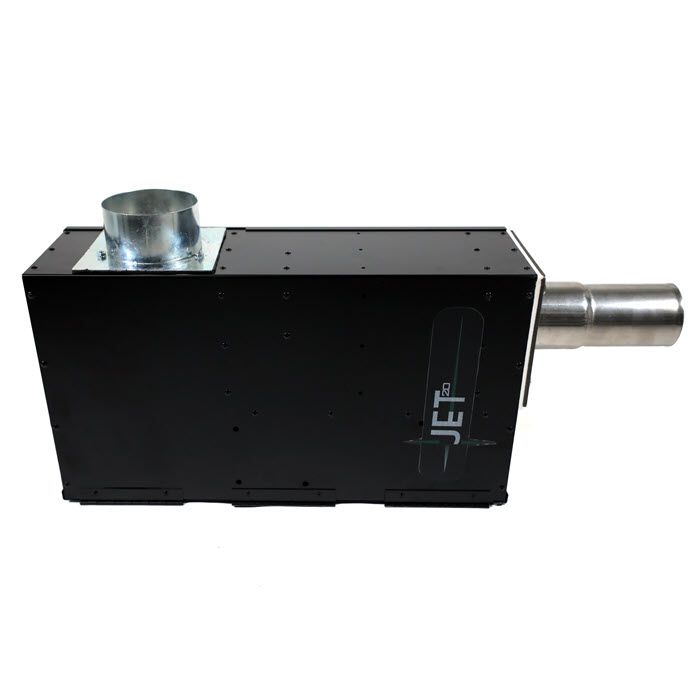

This JET Burner Box (Natural Gas - F102090 / Propane - F102095) produces a unique 10ft "jet-like" flame and it is designed for use exclusively JET25 Tube Sets (F106025) in poultry house settings.
Item # | Product Name |
---|---|
F102090 | 100,000 BTU Natural Gas JET Single Stage Burner Box |
F102095 | 100,000 BTU Propane JET Single Stage Burner Box |
F106026 | JET25™ OPTIMIZER™ Tube Set |
F106025 | Tube Set - 25ft for JET25 |
11774 | Conversion Kit 100,000 BTU JET NG to LP |
11775 | Conversion Kit 100,000 BTU JET LP to NG |
17370 | Hanging Chain Kit for Tube Heaters |
F111756 | Air Intake Kit |
This JET 100,000 BTU Burner Box produces a unique 10ft "jet-like" flame that transfers heat most evenly of any tube heating system of this length. In turn, this heater offers the most even floor footprint in a 25ft length and 15-20ft throw in poultry house settings. This results in a wide footprint along the entire length of the tube. Because the heat energy is transferred efficiently and evenly to the floor along a 25ft length, the JET25 Heater provides the most even floor heating system on the market for poultry installations with nearly 25% more efficiency than 20ft alternatives.
- Gasket Sealed Burner Control Box
- Hinged, Easy Access Side Panel Drops Open
- Even Radiant Heating Dries Floor Shavings and Reduces Hot Spots
- Fenwal Spark Ignition Module
- Diagnostic Lights Visible from Ground
- 1 Year Limited Warranty
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
Electrical Rating | 120V |
---|---|
Electrical Connection | Pigtail Leads in Junction Box |
Gas Inlet Connection | 1/2in ID FPT |
Mounting Height Range | 9ft - 12ft |
Clearance to Combustibles: Horizontal | Above 12in; Below 55in; Sides 36in |
Venting: Length Min/Max | 2ft - 3ft |
Venting: Exhaust | 0ft |
Venting: Air Intake | 30ft |
Thermostat Optional | Optional |
Fuel Type | Natural Gas or Propane |
Ignition | Hot Surface |
Weight | 33.9 |
Warranty | 1 Year Limited |
Model | JET25NG / JET25LP |
